简体中文 In the logistics warehouse sorting area, electronic factory assembly line, e-commerce packaging workshop, you can always see a row of conveyor equipment with rollers - they are the important conveyor tool in automated logistics -platen line. Whether it is cartons, trays, or parcels, parts, as long as the roller line to a put, can be automatically sent to the designated location, greatly reducing the trouble of manual handling.
Do you know how roller lines work? And what are the common types? Today we will give you a brief introduction:
One,platen line的Working Principle
platen lineThe working principle is actually not complicated, the core is to rely on friction to drive the items rolling conveyor. For example, thisLight duty roller linesIt is mainly composed of three parts: motor, drum and bracket: the motor drives the drum to rotate through the reducer, and the friction is generated when the surface of the drum and the goods are in contact with each other, so it can bring the goods to run forward.
Among them, it is the driving roller that drives the roller to turn, and the one that is responsible for changing the direction of the goods is the redirecting roller. For example, the turning conveyor section in the workshop is relying on the redirection roller to make the goods turn a corner without laborious manual handling.
Two,How many types of roller lines are there? Focus on these two types
By drive type.platen lineThere are two main types: unpowered and powered.
Unpowered by artificial push or the weight of the goods themselves sliding, suitable for short distances, light goods; power roller line is more widely used, including light load roller line andAccumulation roller conveyor lineIt is the most commonly used in factories nowadays.
l Light duty roller lines：
The load of single section is usually under 60kg, the diameter of roller is commonly used 38mm, 50mm, and the conveying speed is adjustable (usually 10-30 meters/minute). The support can choose aluminum profile or carbon steel spraying, lightweight and also corrosion-resistant, especially suitable for 3C electronics, small home appliance industry, used to convey small parts or packaged products.
l Accumulation roller conveyor line：
The best feature is the ability to store goods temporarily. When the goods in front are not removed, the ones behind can stop and wait, which will not cause stacking. Its roller is a special accumulation design, with motor speed control, suitable for scenes that require buffering, such as e-commerce sorting area, express transit warehouse, can avoid cargo congestion.

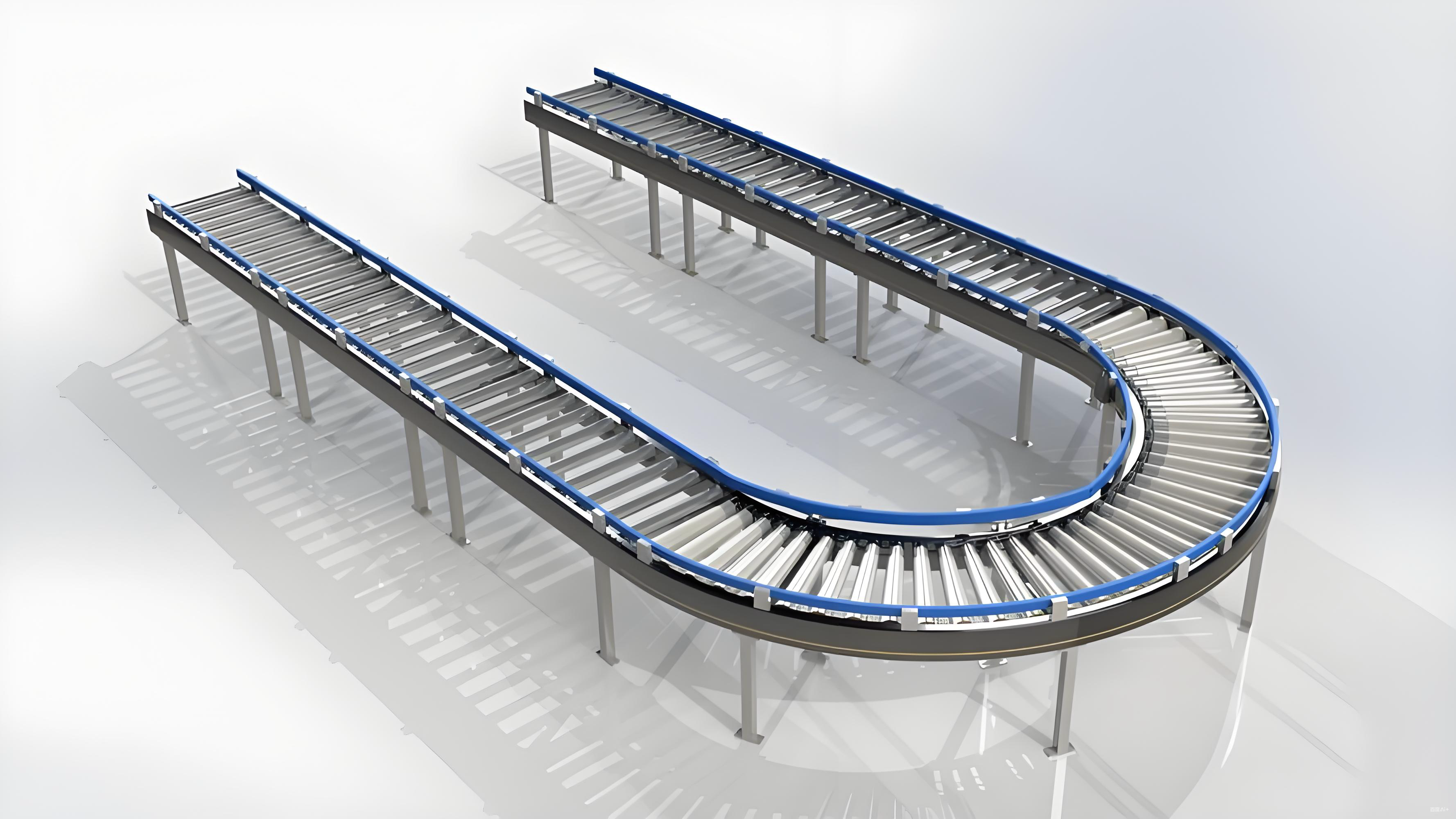

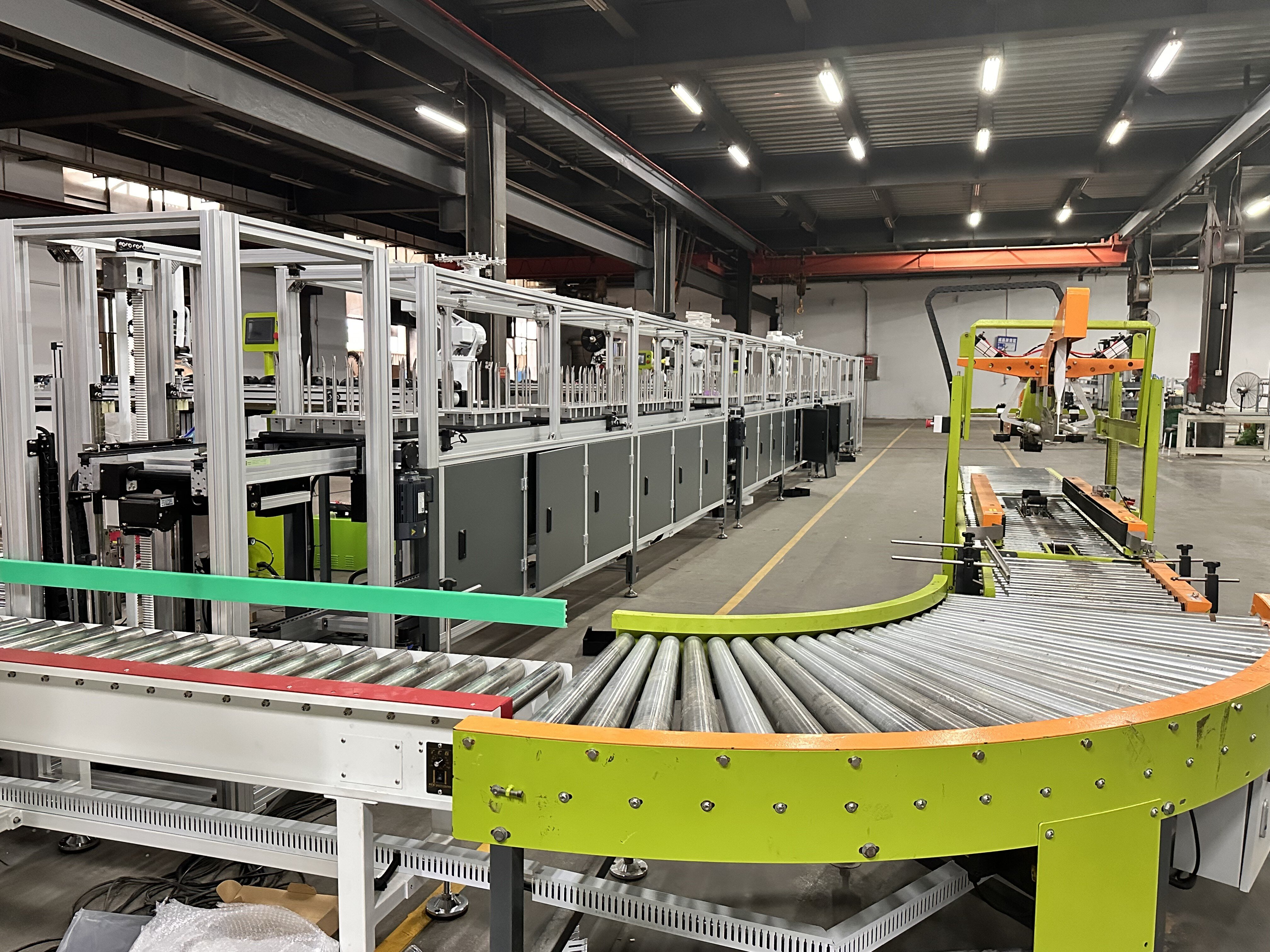

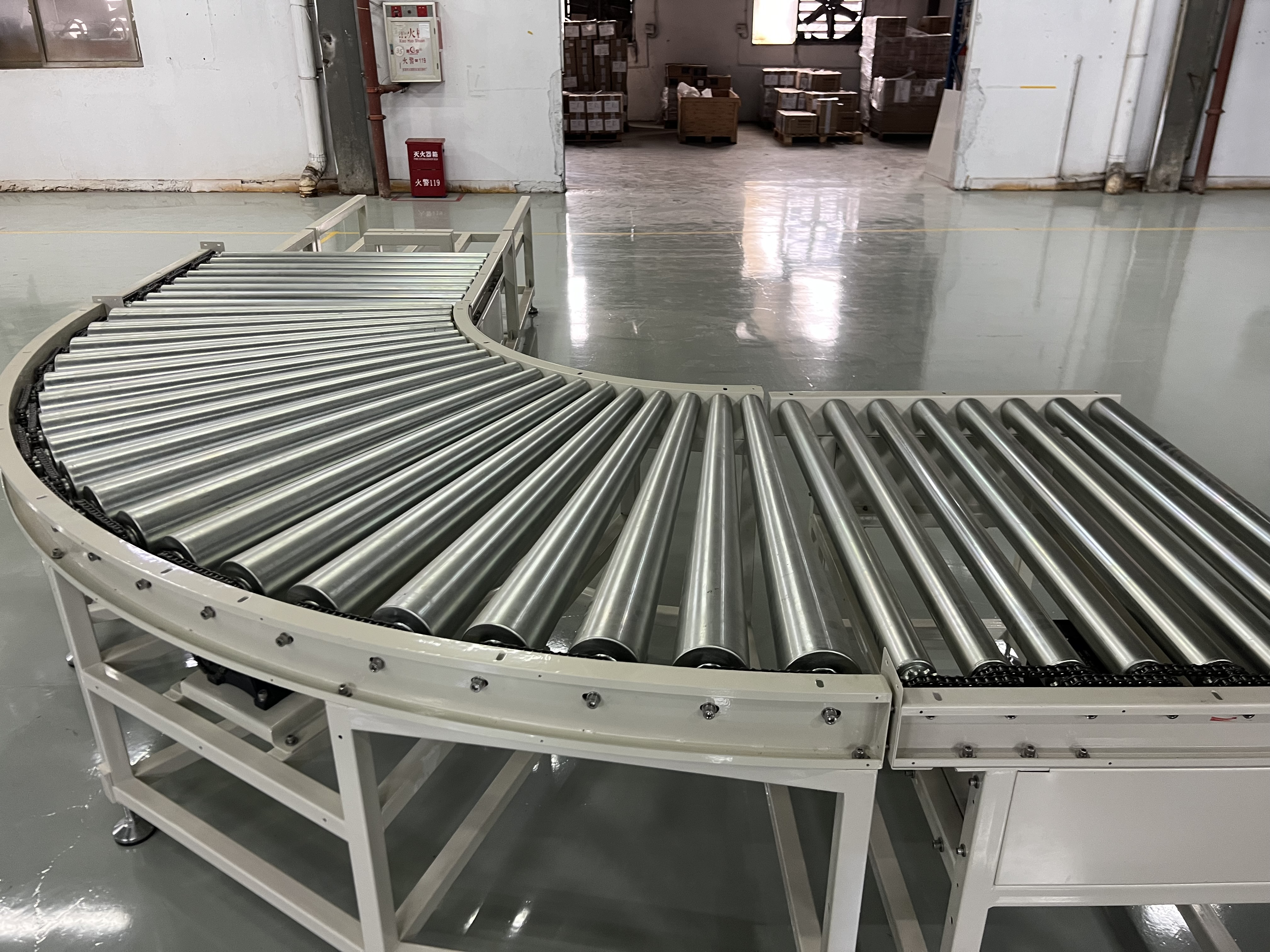

In addition, there are also turning roller lines (turning radius minimum 300mm, can be customized), rubber-coated roller lines (anti-scratch goods), which can be selected according to the layout of the workshop and the type of goods.
Three,What should I look for when choosing a roller line?
选platen lineYou don't have to just look at how expensive it is, focus on whether it matches your needs:
1. Look at the condition of the goods:Choose light duty line for small and light parts, and heavy duty for heavy loads (e.g., 500 kg or more).platen lineFor goods that are afraid of scratching (e.g., appliance housings), choose rubber-coated rollers.
2,Look at the workshop conditions:Wet or corrosive environment (such as food workshop) choose stainless steel support; need to turn frequently choose turning roller line, confirm the turning radius in advance.
3,Look at the speed requirements:If you need to be fast and slow, choose the inverter speed control; if the speed is fixed, the ordinary model will be enough, and you can save money.
indeedplaten lineNot the more expensive the better, but the more matching the better. A suitable roller line can make the workshop handling efficiency up, and also reduce labor costs. If your factory is looking for conveying equipment, you may want to think clearly about the weight of the goods, the workshop layout of these needs, and then choose the corresponding roller line type. If you are still not sure how to choose, or need to customize the size, you can also find professional manufacturers to communicate, after all, suitable for their own production scenarios, is the best.
