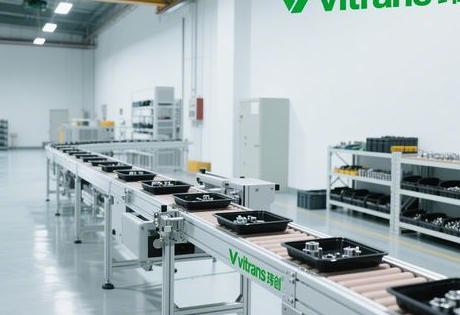

Jinhua ring doubling chain line customisation: a precision engine for intellectual upgrading

• ​Material Innovation: Adopting 118×100mm aluminium profile rail with engineering plastic chain, the anti-wear performance is improved by 3 times, and the self-weight is reduced by 38%;
• ​intelligent control: Integrated PLC system (Mitsubishi/Siemens optional) and pneumatic stopper, stopping accuracy ± 0.5 seconds, support RFID dynamic speed control response <3 seconds;
• ​spatial reconstructionThe U-shaped layout compresses the 60-metre linear production line to 14 x 6 metres, increasing the capacity per unit area by 55% and saving 240,000 yuan in annual electricity costs.

​Industry pain point breakthrough: Conventional speed chains are unable to regulate the beat due to fixed speed ratios, and the Jinhua programme has been adopted."Pneumatic blocker + jacking transplanter"Achieve accurate accumulation of tooling boards and solve production line congestion caused by differences in employee efficiency.

Scenario Matrix: Multi-industry Adaptation Solutions

​1. Electrical and electronic assembly​

​2. Heavy-duty manufacturing scenarios​

• ​Automotive Engine Cables: 42CrMo alloy steel chain load 2000kg, thermal deformation compensation accuracy ±1mm;
• ​Chemical conveying line: Teflon coating resists pH 2-12 corrosion, multi-layer design enhances space utilisation 300%;
• ​General assembly of home appliances: Modular aluminium profiles support 2m unit extensions and retrofit shutdowns in just 6 hours.

​3. Food and pharmaceutical compliance​

• ​Zero microbial residue: Laser welded rails + Titanium Dioxide photocatalytic coating, FDA Flight Inspection passed;
• ​HACCP design: 32 dynamic sampling points instead of full-chain sterilisation, with certification costs down to 60%.

Third, the customisation process: five-order model to crack the non-standard problem

​1. Precise targeting of demand​

• ​load gaming: Reduced cost 38% with engineered plastic chain for light load areas and localised reinforcement for heavy load sections;
• ​environmental adaptation: Select 40Mn heat-resistant chain for high-temperature scenarios, and add IP54 protective cover for dusty environments.

​2. The iron rule of technical validation​

• ​Overload test: Nominal 2000kg requires 3000kg for 24 hours of continuous operation;
• ​Precision Calibration: Laser tachymeter verified conveyance fluctuation <0.5%, stopping error ±0.5 seconds.

​3. Cost control levers​

markdownmake a copy of
Total cost = equipment price + 12 x average monthly maintenance fee x 1.5 (implicit factor)

agree to and sign (a treaty etc)Energy efficiency betting agreements: The supplier compensates for the difference in electricity costs in the event of insufficient energy savings;
Policy dividend: Jinhua Hi-Tech Zone subsidised equipment investment of 15%.


IV. Operation and maintenance barriers: the leap from "working" to "saving"
​90% Failure Stems from Maintenance Negligence, Jinhua business practices reveal key points:

​Lubrication Management: Oil change 3 months after first use and annually thereafter (oil level to the centre line of the viewing window);
​Day-clearing mechanism: Clean chain track waste after shift to prevent chain jamming accidents;
​Electrical inspection: Check the emergency stop button bit + conductive wheel insulation daily.


​Accident Alert: A motor factory did not do thermal deformation test, chain offset ± 5mm to the manipulator failure rate surge 30% - seal of approval"Preventive Maintenance Costs < Failure Losses"The Iron Law of.


V. The battlefield of the future: the convergence of flexibilisation and digital twins
The Jinhua supply chain is driving a triple transformation:

​magnetic levitation (train): 38.1mm pitch chain is reserved for contactless transmission interface, energy consumption is further reduced by 42%;
​Edge Intelligence: The LSTM algorithm warns of congestion with a throughput increase of 40%;
​digital twin: Open Modbus-TCP protocol, compatible with MES systems (2027 downtime target <1 hour/year).


​Exclusive Data Extrapolation:: In the procurement of Jinhua multiplier chains in 2028.With intelligent pre-maintenance clauseThe proportion of contracts will exceed 80%, and the devaluation rate of systems without reserved upgrade interfaces is as high as 35% - technology iteration is reconstructing the industry value coordinate system.


Ask Yourself: The Four Challenges of Customisation
​Q1: How to verify the real technical strength of the supplier?​

​the "Three Witnesses, One Test" rule (in former times)::

Material testing certificate (e.g. 42CrMo pressure resistance ≥ 1080MPa);
±0.5mm positioning accuracy third party report;
1.5x overload test video;
On-site emergency stop response test (braking distance <0.8 metres).

​Q2: How can SMEs avoid "affordability"?​

​Cost Hedging Strategies::

Reduced cost 38% with engineering plastic chain for light load areas and local reinforcement for heavy load sections;
agree to and sign (a treaty etc)Maintenance package agreement: Annual fee capped ≤ device price 15%.

​Q3: How do food lines balance FDA compliance with cost?​

​Hierarchical defence and control matrix::



shore
programme
cost ratio




​direct contact segment​
Laser welded guide + UV sterilisation
12%


​non-contact segment​
Carbon steel chain + nano hydrophobic coating
5%


​monitoring system​
Dynamic detection of 32 sampling points
3%



​Q4: How do you iterate on technology without falling behind?​

​interface reservation strategy::


Aluminium profiles are selected from 118×100mm national standard specifications, supporting magnetic levitation roller upgrade;
Requires open PLC communication protocols that are compatible with digital twins.


​Jinyi New DistrictWith the opening of the Jin-Yong Railway in 2026, the logistics timeframe for heavy-duty components will be shortened by 50%, and the Speed Chain"Spatial Folding Effect"Will resonate with the central Zhejiang multimodal transport network -"The production line is the supply chain"The time is coming.
