简体中文 在现代汽车总装车间里，银色轨道如同立体高架桥般上下盘旋——上层满载发动机部件匀速前进，下层空工装板沿重力斜坡悄然折返。这套Upper and lower double speed chain system以"Space Folding"Logical reconfiguration of the production layout: throughDiameter difference between roller and roller (D/d)Achieve 2.5-3 times the movement speed of the workpiece plate compared to the chain, while utilising thevertical stratification将传统产线占地面积压缩60%。当上层工装板承载变速箱进入装配工位时，下方空板正通过移载机自动轮转，这种动静分离的双层协同，正在突破离散制造的物理边界。

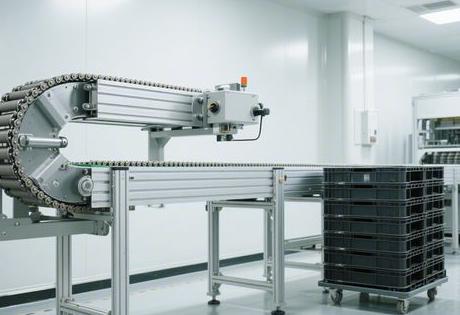

一、物理法则与增速内核
The mystery of the "multiplication" of the speed chain comes fromRigid linkage of composite rollers：滚子直径d（15-20mm）与滚轮直径D（最大38mm）形成比例差，工装板速度遵循 V=(1+D/d)v₀ 的物理公式。当D/d=2时，理论增速达3倍，但Friction loss can reduce the actual growth rate to 85%-90% of the theoretical value。双层结构通过三重设计突破此瓶颈：
- Dual material roller systemThe upper heavy-duty section has embedded steel rollers to support the 2.5 tonne engine block, while the lower light-duty section has glass fibre nylon wheels to reduce noise;
- High frequency quenching guideSurface hardness is up to HRC60, and the friction coefficient is reduced by 40%, ensuring that the long-distance conveying does not run away;
- 液压动态张紧：实时补偿链条热变形，40米行程形变≤±0.3mm。
personal observation: In the new energy battery factory research, its"Maglev-assisted drive" design令人惊叹——弯道处嵌入电磁助推模块，使工装板离心偏移量下降80%。这种机电融合印证了“场景化力学适配”在工业拓扑中的核心价值。
二、空间折叠与效率跃升
传统单层倍速链存在double wastage：30%冗余走道+20%回程空转。双层拓扑通过四重革新破局：
- three-dimensional circulation architecture (GCI)：上层装配线与下层回流线垂直间距1.2米，50m直线布局压缩至15m环形；
- 重力回板机制：空载板经聚氨酯导轮+气动止挡器滑入下层，碰撞损伤率下降90%；
- Modular splicing：2米标准段快速组装，48小时内切换L型/U型布局；
- 缓冲承托平台：弯道处碳钢支架分散80%压力机载荷。
One gearbox plant's practice is even more groundbreaking: it employs the“外环2.5倍速+内环3倍速”嵌套弯道——外环输重型壳体，内环走精密齿轮，日产能提升38%。
三、核心组件与协同运作
The efficient operation of the upper and lower double-layer speed chains relies on the precise co-ordination of the five modules:
- power module: Mitsubishi FX series PLC drives dual-axis motors with synchronous frequency conversion (5-25m/min) on the upper level and constant speed plate return on the lower level;
- transfer mechanism：气缸顶升平移台承重1.8吨，激光定位精度±0.15mm；
- Barrier systems：直角三角形摆块+扭簧设计，响应时间≤0.3秒；
- return mechanism: Ejector cylinder + linear guide for seamless rotation of upper and lower levels;
- guide component: Silicon carbide coated guides have improved wear resistance by 601 TP3T and reduced dust adsorption by 451 TP3T.
The key innovations are"Flexibility" material strategy-AdoptedThin-walled hollow aluminium profilesBy replacing the solid steel beams, the weight of the line body is reduced by 40%, yet it can still carry 3 tonnes of wind turbine gearboxes.
四、行业场景的硬核适配
基于模块化设计，上下双层倍速链已在三大领域展现颠覆性价值：
- automobile manufacturing：液压阻尼滚轮+碳钢链板，输送变速箱时振幅≤0.08mm；
- 3C electronics：防静电尼龙滚轮+离子风除尘，SMT贴片板错位率≤0.05%；
- Pharmaceutical Sorting：316L不锈钢导轨+全封闭风淋，符合ISO Class 5洁净标准。
东莞手机屏工厂的案例尤为典型：其"Two-speed hybrid" design——上层2.5倍速链输大尺寸面板，下层3倍速链走微型传感器，空间利用率提升70%。
五、智能升级与未来战场
作为非标定制设备，其通用性取决于三大要素：
- Interface standardisation：DIN导轨式电气接口支持库卡机器人即插即用；
- modular reconfigurable：增减2米标准段，48小时切换汽车/家电生产模式；
- Energy Dual Circuit：光伏+电网双供电，限电时产能维持率超85%。
Industry Insight: Smart Manufacturing 2025 report reveals new trends -“磁流变阻尼技术”正逐步替代气动阻挡器。某刹车盘厂实测表明，磁流变液自适应调节能耗降低35%，定位精度跃升至±0.05mm。
Reader Q&A: Practical Pain Points Explained
Q1：小型车间如何部署双层系统？
垂直L型布局：浙江阀门厂采用高6m/长8m设计，上层装配段与下层返板线直角重叠，改造成本回收期缩至18个月。
Q2：高粉尘环境如何维护链条？
微孔自润滑+负压除尘：永清电商仓实测显示，滚轮内嵌微孔油毡配合风道吸附，粉尘沉积量减少80%，维护周期延长3倍。
Q3：如何解决上下层速度不同步？
Single motor + double output reducer：某汽配厂改造案例表明，替代分体电机后速度差归零，输送效率提升40%。
Exclusive Data Insights: According to the 2025 China Smart Manufacturing Association, the penetration rate of upper and lower double-layer multiplier chains in the automotive industry reaches 91%, but only 35% in the pharmaceutical field -无菌环境改造成本过高（超标准线40%）仍是主要障碍。头部企业正研发Graphene-based self-lubricating guideway，实验室数据表明弯道耐磨性提升300%，若2026年量产成功，生物制药领域输送效率或将突破8000件/小时。
