200kg Heavy Duty Double Layer Speed Chain: The Space Folding Revolution of Heavy Duty Intelligence

In the deep waters of Industry 4.0.Heavy-duty double-deck speed chain is innovating with the dual core of "Space Folding + Pressure Transfer"., cracking the bottleneck of heavy-duty production line efficiency - through theDouble-layer closed-loop topologyIt achieves a 1.8-fold increase in capacity density in the same area.Patented support platform designThis reduces the failure rate of heavy component assembly lines by 50% by transferring the pressure of workpieces over 200kg from the chain to a rigid support.

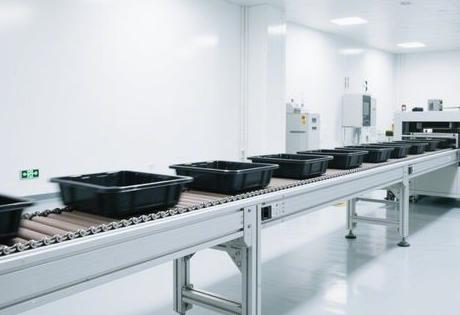

One.Heavy Duty Technology Breakthrough: Three Physical Reconfigurations for 200kg+ Loads​

Traditional speed chains are prone to deformation and breakage under heavy load scenarios. The new generation design breaks through the bottleneck through material and structural innovation:

• ​Carbon Steel Reinforced Matrix: AdoptionHardened alloy steel chain plate(Hardness HRC45-50) withBearing type rollersThe single-point load capacity has increased from the conventional 100kg to 200kg, and is resistant to continuous impacts of heavy workpieces such as automobile engine blocks;
• ​Pressure shifting mechanisms: Drawing on patent CN202320439829.6 of theDesign of the hosting platformWhen the support column is pressurised, it passes through the holes of the pallet and transmits the 200kg pressure directly to the frame, which reduces the risk of deformation of the chain;
• ​Dynamic Balance System: Every 6 metresIndependent inverter motor(e.g. 0.75KW Mitsubishi servo), real-time adjustment of chain tension by tension sensor, avoiding the risk of jumping teeth caused by gravity sagging during long-distance conveying.

Measured data: After adopting this design for a gearbox production line, the chain life was extended from 8 months to 3 years, and the maintenance cost dropped by 40%.

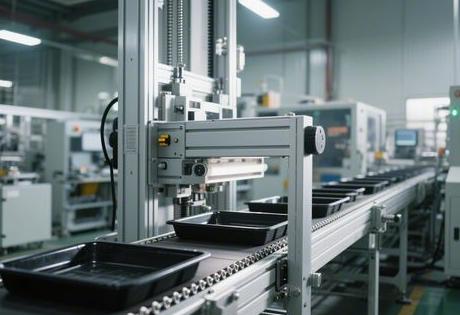

Two.Structural revolution: how double-layer topology can unlock the potential of space​

The core value of the heavy-duty double-deck doubled speed chain lies inSpatial reconfiguration and process optimisation::

​1. Vertical circulation: eliminating idle waste​

• ​top-down synergy: Upper level conveys 200kg workpieces (e.g. motor housings) and the lower level circulates the empty pallets, eliminating the 12 metres of ineffective space in the return area at the end of a traditional production line;
• ​Plate Return Machine Innovation: Ejector cylinder + linear guide to achieve vertical transfer of the workpiece plate, the changeover time ≤ 3 seconds, than the traditional roller reflux efficiency increased by 60%.

​2. Modular expansion: dynamic reconfiguration of production lines​

• ​Quick release aluminium profile rail(127×100mm section): support width 250-900mm freely adjustable, heavy-duty section can be set with steel rails to enhance wear resistance;
• ​building-block construction: Connects jacking and translating machines and indexing modules through T-slot interface, completes line restructuring in 1 day, and adapts to small-lot, multi-variety production.

​Performance Comparison​

Three.Intelligent control: dynamic scheduling and predictive maintenance​

Stability Dependencies of Heavy-Load ScenariosSense-Decide-Execute Closed Loop::

1. ​Dynamic dispatch system​



   • ​RFID Workbench Tracking: UHF tags are implanted in each pallet and linked to the MES system to optimise path allocation in real time;
   • ​Pneumatic and electric linkage blockerResponse time ≤ 0.3 seconds, with PLC (Siemens S7-1200) to achieve ± 0.5mm level precision stop.

2. ​Predictive maintenance network​



   markdownmake a copy of
   | Monitoring Points | Sensor Type | Early Warning Threshold | Intervention |
   |---------------|------------------|--------------------|------------------------|
   | Chain tension | Fibre optic strain sensor | >120N/mm² | Automatic tensioning mechanism activation |
   | Roller Wear | Vibration Accelerometer | Amplitude ≥5g @1kHz | Lubrication System Spray Lithium Grease |
   | Motor temperature rise | PT100 thermocouple | Winding temperature ≥110°C | Reduced-frequency operation + start of cooling fan |
   Based on the digital twin model, fault warning accuracy reached 921 TP3T and unplanned downtime was reduced by 401 TP3T.


Four.Selection calculations: from theoretical formulas to real-world parameters​

Avoiding overload failure requiresCutting through the parameter trap, focusing on third-order computational models:

1. ​Tension checking formula​
   T=10009.8​×[(Hw​+Cw​)×L1​×fc​+Aw​×L2​×fa​+(Aw​+Cw​)×L2​×fr​+1.1Cw​(L1​+L2​)fc​]

   • ​real-world simplicityWhen the conveying length is 15m and the stacking section is 10m, WCHE5 grade chain (allowable tension ≥75kgf/m) is required for 200kg load.

2. ​Motor Power Algorithm​

   markdownmake a copy of
   | Parameters | Example values | Calculation logic |
   |---------------------|------------|------------------------------|
   | Chain speed (V) | 8 m/min | Over speed is not suitable for heavy load scenarios |
   | Speed Multiplier(A) | 2.5 times | Balance Efficiency and Stability |
   | Total weight of workpiece(M1) | 200kg | Including jig plate |
   | Acceleration time(t) | 0.5s | Avoid inertial shock | Output power(P) | 0.5s
   | Output Power(Po) | 0.75KW | Selection by 1.5 times redundancy |

   A new energy battery pack production line measured: speed down to 8m/min, the chain breakage rate from 5 times / month to 0.2 times / month.



Five.The battlefield of the future: intelligent extension of heavy-duty doubling chains​

I think the next generation of technology will revolve aroundMaterial Revolution and Autonomous Decision MakingExpand:

• ​Bio-based Composites: Synthetic tumblers from corn stover extract (12 tonnes of carbon reduction/line-year) with strength up to 901 TP3T of nylon 66 at a lower cost of 301 TP3T;
• ​Off-grid drive systems: Photovoltaic + energy storage modules directly supplied to the motor, a factory in Suzhou measured energy cost reduction of 60%;
• ​AI dynamic scheduling: Optimising beats through reinforcement learning algorithms to achieve automatic fitment of Japanese/German models' tooling boards in automotive mixed-line production, and compression of changeover time from 45 minutes to 5 minutes.

​Exclusive data: Heavy Duty Production Line Intelligence 2025 report shows OEE improvement of 351 TP3T for companies with modular double-layer doubler chains, but only 201 TP3T companies activated digital twin potential -Hardware is the vehicle, algorithms are the soul.

Ask Yourself: Cracking the Decision-Making Fog of Heavy Duty Scenarios

​Q1: How to balance speed and stability under 200kg load?​
​The Golden Rule of Speed-Load::

• ​Speed ≤10m/min: Select a 2.5x chain (D/d = 1.25) with 40% lower power consumption than a 3x chain;
• ​Load ≥ 150kg: Roller diameter ratio D/d ≤ 1.5 to avoid centrifugal force causing workpiece deflection.

​Q2: How can I verify the manufacturer's true load-bearing capacity?​
​the three-order stress test method::

1. ​Static load test: Apply a load of 250kg (nominal value 125%) for 24 hours and the deformation is ≤0.1mm/m;
2. ​impact test: 50kg weight hammer 1m height free fall impact on the work plate, the chain is not disconnected;
3. ​fatigue testing: 500km continuous operation with 200kg load, wear rate ≤0.05mm/100km.

​Q3: Does the two-tier layout make maintenance more difficult?​
​Modular Maintenance Design Inverts Efficiency::

• ​Quick release links: Replacement of a single section takes <10 minutes (2 hours for conventional structures);
• ​Layered overhaul: In case of lower tier failure, it can be switched to single tier mode operation and maintenance without affecting production;
• ​IoT oiling: Automatically adjusts the lubrication cycle according to temperature and humidity, saving 30% in consumables.

​Final Recommendations: Automotive/Airline SelectionCarbon Steel Heavy Duty Chain + Carrier PlatformNew Energy OptionsWind and light driven + dynamic scheduling--Carrying is the bottom line, intelligence is the ceiling.
