Single Speed Double Layer Chain: Synchronous Conveying Solutions for Precision Manufacturing

in the field of precision manufacturing.Single Speed Double Layer Chain SystemThrough the design of synchronised operation of the upper and lower
Solving the core contradiction of precision assembly in which the positioning accuracy of the work plate and space efficiency cannot be taken into account.
Become an indispensable infrastructure for high-precision production lines.

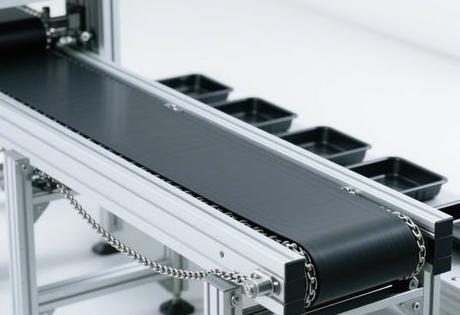

⚙️ Core features of the single speed chain

​Single Speed ChainThe core difference between the (centre roller chain) and other doubler chains is itsSynchronised operation features--The chain speed is exactly the same as the speed at which the workpiece moves. This design sacrifices the incremental speed increase of a traditional multiplier chain (2.5x or 3x speed) in exchange for theHigher positioning accuracy and operational stability. In the double-layer structure, the upper layer conveys the loaded work plates and the lower layer synchronises the recovery of the empty plates, forming a closed-loop system.

​Precision Control Advantage::

• No speed difference means that between the work plate and the chainNo sliding frictionReduced wear and tear on rollers (especially engineering plastic wheels).
• ​More accurate blocker responseThe stopping position error of the workpiece plate can be controlled within ±0.5mm.
• Low vibration operation protects sensitive components in precision instrument assemblies

🔍 Structural composition and operating principle

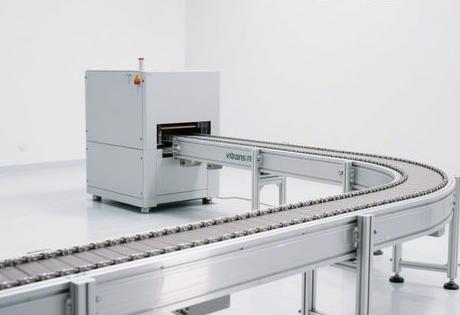

​1. Chain type and material​
The single speed chain usesCentre roller constructionThe rollers and chain plates are directly loaded. Optional according to load requirements:

• ​Light Duty: Engineering plastic rollers (nylon/PP), noise below 45dB
• ​heavy duty: Carbon steel or stainless steel rollers with a permissible load of up to 3.92 kN/m (with rail construction).

​2. Two-tier architectural design​

plaintextmake a copy of
Upper working line → workpiece running on pallets → assembly at operator's station
↓ Lifting and panning mechanism
Lower recycling line → empty pallets return to the starting point → recycling rate up to 100%
Key Componentsbackplane machineIt consists of jacking cylinder (with linear guide) + drive chain to realise vertical rotation of upper and lower levels.
​3. Mechanism for synchronisation of tooling boards​

The width of the work plate should meet theW=Rail hollow dimension -10mmof the clearance standard (e.g. 290mm for a work plate if the rail is 300mm wide). ByConductive Wheel + Sliding Contact WireDesigned to power on-board test equipment, it is particularly suitable for electronic products that require in-circuit testing.

🏭 Application Scenario Analysis
​Semiconductor Wafer Processing Line​

In a class 10 clean environment, a single-fold double-layer chain ofAll stainless steel anti-static versionConveying wafer carriers. Synchronised speed ensures precise linkage between the exposure machine and the etching process, avoiding micron-level errors caused by wafer displacement.

​Precision instrument calibration section​

An optical lens company uses PVC work boards (1000 x 1000 x 30mm) to carry 150kg of lens components.Single speed operation eliminates acceleration interferenceThis has resulted in a 22% improvement in the lens optical axis calibration pass rate.
​Space optimisation for medical device assembly​

In a plant with a floor height of only 4m, a double-storey structure is better than a single-storey loop line.Save 60% Floor Space.. The lower return channel integrates a charging module to provide continuous power to the electric screwdriver on the work board.

🧰 Design considerations and optimisation directions
​The Golden Rule of Line Layout​

single segmentShould not exceed 12m. Extra long wire body needs to be designed in sections (e.g. 30m wire in 3 sections) to avoid hard wear of chain due to non-straight splicing of aluminium profiles. There was a case where the installation deviation of 40m one-piece guide rail was 0.3°, which led to a surge of 300% in the monthly loss rate of the chain.
​The Cost Game of Material Selection​

​inconsistency: Blindly choose all stainless steel chain to resist corrosion
​optimisation: Stainless steel is only used in wet environments (e.g. electroplating workshops), dry electronic workshops are used.Carbon steel chain plate + engineering plastic rollerCombination, cost reduction of 40% and meets 10-year life expectancy

​The balance between speed and precision​

Recommended Running Speed5-8m/min(Conventional multiplier chains often take 15m/min). Excessive speed can be triggered:
plaintextmake a copy of
1. Increased plate overshoot → blocker needs to be positioned twice
2. Slight vibration due to centrifugal force of rollers → affects precision mounting process

🔧 Maintenance strategy: the value of preventive maintenance
​Periodic table of key monitoring points​



character radical
Inspection items
cyclicality
Tolerance criteria




Chain rollers
Diameter wear
every month
≤0.2mm


guideway seam
altitude difference
season (sports)
≤0.1mm


Blocking cylinders
response time
daily
≤0.3s


Carbon brushes for conductive wheels
contact resistance
(soup etc) of the day
≤5Ω



​Lubrication technology innovation​

adoptionFood grade grease containing PTFEIt meets the hygienic requirements of medical device production lines (FDA compliant) and reduces oil mist contamination in a clean room. After the application of an insulin pump production line, the chain maintenance cycle was extended from 2 weeks to 3 months.

💡 Industry outlook: positioning of single speed chains in smart manufacturing
in the wake ofHigh-precision micro-assemblyDemand is exploding (e.g., MEMS sensors, optical module production), and the single-speed chain is undergoing three major technological evolutions:

​Intelligent stopping system: Laser positioning + pneumatic servo stopper, positioning accuracy up to ±0.05mm
​Hybrid ArchitectureWireless charging module integrated in the lower recovery line to support AGV automatic board pickup
​Predictive maintenance: Chain tension IoT sensor warns of failures, downtime reduced by 90%


In a German Industry 4.0 prototype factory, a single-fold double-layer chain has evolved into a"Dynamic precision adjustment system"--Adopting 2.5 times speed in the conveying section to improve efficiency, and automatically switching to single speed mode when entering the SMD station. This flexible design improves the comprehensive efficiency of the production line by 37%, which reveals the future development direction of conveying technology.


Self-questioning: the central query about single-fold double-layer chains
​Q: Why not just switch to a 2.5x chain when a singlex chain is inefficient?​

Answer.Precision assembly scenarios require the elimination of inertial displacements due to speed differencesThe 2.5x chain has an average overshoot of 2-3mm on the stop of the tooling plate, whereas the single speed chain keeps this error within 0.5mm, which is critical for processes such as micro solder joint placement.

​Q: Does the double-layer construction increase the risk of failure?​

A: The jacking and translating mechanism passesRedundant design for reliability::

Parallel connection of two cylinders: 70% load operation can be maintained in case of single cylinder failure
Guide shaft + linear guide: prevents jacking deflection and jamming

The actual failure rate is only 0.7 times / 10,000 hours, much lower than other equipment on the production line.
