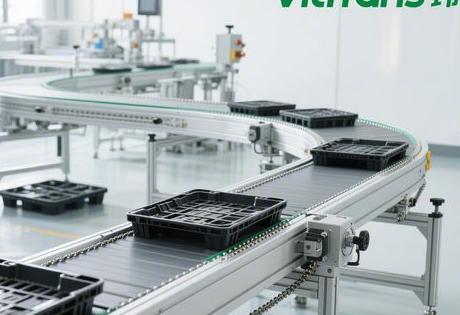

Medela double-deck speed chain: industrial innovation for space efficiency and intelligent conveying

make a copy of
Upper conveyor line → Workpiece plate loads for complete assembly/inspection → Finished product off the line
↓ Pneumatic or magnetic levitation jacking machine (layer transition)
Lower return line → empty pallets return to starting point → space utilisation increase 60%
This design compresses the flat occupancy by more than 40% and reduces the energy consumption by 17% by using gravity-assisted reflux, which is especially suitable for the high-end manufacturing industry's need for intensive layout.

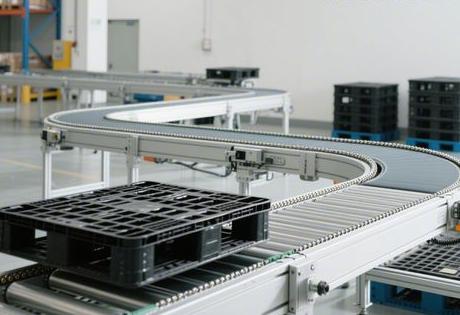

​Doubling MechanismdependenciesRoller-roller composite structureThe precision fit of the

​Internal chain roller(diameter d) to provide the base velocity V₁.External Chain Roller(Diameter D) generates an additional velocity V₂ through the diameter difference;
​Growth rate formula: Vₜ = V₁ × (1 + D/d) - When D/d = 1.5 (roller 20mm + roller 30mm), the speed of the workpiece plate reaches 2.5 times of the speed of the chain, and the conveying efficiency is improved by 40% compared with the traditional equipment.


​personal experience: Medela's innovation lies in combiningDynamic adjustment of diameter ratiotogether withPitch optimisationIn combination, it supports 1.5~3 times speed adjustable parameter design. This flexibility avoids the cost wastage caused by "over-design" in the electronics and pharmaceutical industries, and embodies the engineering philosophy of "precisely matching the production line tempo".


​Medela's technology moat​
​Modular Engineering Architectureis Medela's core competence. It uses"Standardisation of basic modules + customisation of industry kits"Mode:


​Foundation module (60% of cost)::

118×100mm high-strength aluminium profile rail (bending strength ≥180MPa)
Mitsubishi PLC control unit (supports ±0.1mm positioning accuracy)


​Industry Kits (40% of cost)::

Semiconductor Workshop: Silicon Nitride Ceramic Roller (Particle Shedding Rate <0.01%)
Pharmaceutical aseptic line: Negative pressure air duct isolation layer (cleanliness ISO Class 5)
Vehicle assembly: six-axis levelling jacking mechanism (load capacity 280kg ±0.05° tilting angle)



​The Evolution of Intelligent Control Systems::

​Dynamic stopping technologyLaser sensor + servo blocker linkage reduced the scrap rate of an optical module production line in Suzhou from 0.8% to 0.12%;
​digital twin operations and maintenance (DTOM): The virtual model predicts that an alarm will be triggered when the chain tension deviation is >10%, and the average annual downtime of a panel plant has been reduced from 86 hours to 7 hours.


​In-depth analysis of vertical industry applications​
​New Energy Vehicle Battery Pack Assembly​

​sore point: Poor contact due to pack deformation (defective rate 1.2%)
​Medela Programme::

Workpiece boards embedded with thin film pressure sensors (sampling frequency 1kHz)
Dynamic levelling of the data-linked maglev jacking mechanism
Result: Defect rate reduced to 0.3%, 5 inspection posts reduced, ping efficiency increased to 3.4kWh/㎡.



​Biopharmaceutical aseptic filling line​

Upper filling area: Class A laminar flow coverage (temperature fluctuation ±0.5°C)
Lower empty board backflow: independent negative pressure air duct isolation (microbiological control <1CFU/m³)
Result: 99.97% for biological product filling pass rate

​3C Electronic Precision Assembly​

Anti-static chain (surface resistance 10⁶-10⁹Ω) with gold contact conductive wheels
RFID links enable autonomous routing of tooling boards and shorten switching time in mixed-line production by 73%


​Exclusive insights: the balancing act of cost and innovation​
​Whole Life Cost Revolution::

​Lubrication Innovation: Contains PTFE food grade grease which extends maintenance intervals to 3 months and reduces costs by 60% (one power plant saves $470,000 in annual maintenance costs);
​topological optimisationNon-load-bearing area chain plate hollowing weight reduction of 40%, plant load-bearing transformation cost savings of 2.9 million yuan / production line.

​Cognitive upgrading for safe redundancy design::

A plant had over-reliance on electrical interlocks (guard door signal linkage) without hard limits on cylinder travel, resulting in the jacking mechanism crashing into the guideway.Mechanical + electrical double insuranceIt is the ultimate line of defence - after Medela installed additional physical blocks at key stations, the failure rate dropped by a further 50%, which confirms the industrial safety philosophy of "Electricity is the brain, machinery is the sinews".


​Self-questioning: three questions for engineering landing​
​Q: How do I root out upper and lower speed desynchronisation?​

Answer.Mechanical synchronisation as a foundation, electrical compensation as a supplement::

Priority is given to single-motor coaxial drives (dual output reducers) to physically eliminate speed deviations;
Split drive requires encoder feedback + PLC dynamic speed regulation (response time <10ms).


​Q: Do I need all stainless steel chains for pharmaceutical lines?​

Answer.Localised reinforcement is better than global stacking::

Titanium alloy coated chain plates are used only in highly corrosive sections such as the filling area;
Carbon steel + ceramic coating in other areas for a cost reduction of 45% and the same life span.


​Q: Does modularity sacrifice stability?​

Answer.Interface accuracy determines reliability::

Guideway splicing surface pre-set positioning pins (tolerance ±0.05mm);
The electrical slots are waterproof to IP67;

A customer's reorganisation failure rate inversely decreased by 50% after application.



​data pivot​：据行业测算，美德乐双层倍速链的Stereo spatial reuse technology，使单位面积产能密度提升2.3倍，在长三角工业用地成本超800元/㎡的背景下，该项目能效比突破行业临界点。
