双层倍速链输送带：空间重构与智能驱动的制造革命

​Physical principles: engineering codes for velocity superposition​

双层倍速链输送带的核心价值源于​Precise diameter ratio design of rollers and rollers. When the chain is running at the base speed V₁, the actual speed V of the work plate is superimposed by two parts:


  • ​Overall chain travelling speed V₁.;
  • ​Additional linear velocity V₂ generated by the rotation of the rollers(V₂ = (D/d) × V₁, D is the roller diameter, d is the roller diameter).
    The final velocity equation is:
    ​V = V₁ × (1 + D/d)​
    When D/d=2, the speed of the work plate can be up to 3 times the speed of the chain, achieving aBalance between high conveying efficiency and low wear. In practice, due to friction loss, the speed increase effect is usually 85%-90% of the theoretical value, which needs to be compensated by high-precision manufacturing (tolerance ±0.1mm) and self-lubricating rollers.

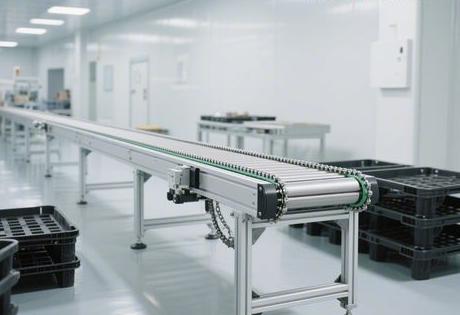

​​结构设计：空间与效能的极致平衡​​

​​1. 双层循环系统​​

上下层分工明确：​​上层承载生产输送​(math.) genus​下层专司空工装板回流​​，空间利用率提升40%。关键参数配置如下：

parameters Standard range/configuration 优化优势
​Line width​ 250-900mm 紧凑布局适配中小厂房
​​单段长度​​ 30-40m 模块化设计减少拼接变形
​load capacity​ 200-2000kg 碳钢链条强化至800kg重载
​​材质创新​​：铝型材导轨（100×118mm）搭配工程塑料链（轻载）或碳钢链（重载），在轻量化与耐用性间取得平衡。

​​2. 同步性保障​​

  • ​mechanical synchronisation: AdoptionSingle motor + double output reducer​替代独立电机，消除上下层速度差；
  • ​electrical synchronisation​：PLC控制编码器反馈，实时调整转速偏差（精度±0.1m/s）；
  • ​Safety Redundancy: Emergency stop button every 5 metres (response ≤ 0.2 seconds) + overload protection in accordance with ISO 13850.

​​行业适配：从电子到重载的定制化突破​​

  • ​Precision electronic assembly::
    • ±0.5mm pneumatic stopper + anti-static work plate to eliminate patch shift;
    • Engineering plastic chain noise <60dB, suitable for clean room.
  • ​Automotive Parts Conveyor::
    • 液压缓冲器吸收70%冲击动能，工装板加宽防变形；
    • Carbon steel chain withstands loads of up to 800kg and disperses heavy-duty compression.
  • ​Food & Pharmaceutical Aseptic Line::
    • Fully enclosed stainless steel frame + CIP cleaning nozzle, GMP certified;
    • 自润滑陶瓷轴承杜绝润滑污染。

​Smart Upgrade: A Data-Driven Leap in Performance​

The limitations of traditional multiplier chains areFunctional curingtogether withdata silo​，现代方案通过三层次破局：

  1. ​dynamic control layer::
    • RFID commands 90° bend diversion to reduce manual sorting 30% time consuming;
    • PLC三档调速（0.3m/s启动→1.0m/s运行→1.5m/s返回）。
  2. ​Predictive maintenance layer::
    • Vibration sensors monitor bearings >5kHz spectrum for 2 weeks advance warning of wear.
  3. ​system integration layer::
    • The workstation is equipped with multifunctional sockets (power/air/network) as standard, supporting the robotic arm to be plug-and-play.

​personal viewpoint: The Smart Module accounts for only 151 TP3T of the entire line cost, but reduces O&M costs by 301 TP3T -For the manufacturing industry, intelligence is not a luxury option, but a lifeline to competitive performance​。当前行业过度关注硬件参数，却忽视数据闭环的价值——例如，通过​​实时载荷分析优化电机功耗​​，可再降能耗12%。


​Technology Trap: The Deadly Details 90% Companies Ignore​

  1. ​runaway thermal expansion::
    • Aluminium profile guides with a temperature difference of 30°C have an expansion of up to2.3mm/m​（α=23×10⁻⁶），需预留膨胀缝+温度补偿算法。
  2. ​Compatibility traps::
    • Non-standard chain pitch (25.4mm vs 38.1mm) makes spare parts mutually exclusive and mandatory.ISO 19731 interface standard.
  3. ​​维护复杂性​::
    • 传统封闭结构拆装需20颗螺栓→模块化快拆盖板将维护时间压缩至15分钟。

​Future trends: magnetic levitation and distributed control​

  • ​Zero Friction Revolution​：磁悬浮倍速链能耗降低52%，取消物理接触磨损；
  • ​bio-based material: Bio Nylon Rollers have a lower carbon footprint than metal 80% and temperature resistance exceeding 150°C;
  • ​blockchain collaboration: AGVs and shifters respond with a delay of <50ms, enabling distributed dynamic scheduling.

​Self-questioning: Cracking the landing doubts​

​​Q：为何定制成本比标准线高25%-30%？​​
A: The triple premium stems from​深度适配​::

  1. The cost of infinitely variable speed motor + gearbox is 2 times that of a normal motor;
  2. The 14-station air circuit system (oil/water separator + air separation) accounts for 151 TP3T of material costs;
  3. Anti-static PVC work board + acrylic process signage to enhance ergonomics.

​Q: Can I directly upgrade my existing single tier line to double tier?​
A: Two hard indicators need to be met:

  • ​Plant net height ≥4 metres(Minimum space requirement for lower return level);
  • ​Drive power redundancy ≥ 30%(Compensates for lift energy consumption of the lift).

行业数据显示：采用上下双层倍速链后，​Capacity per capita increased by 40%but (not)Maglev + bio-based materials​技术组合将使2027年产线碳排放再降40%——这不仅是效率革新，更是制造业从”空间掠夺”转向”技术共生”的战略拐点。
