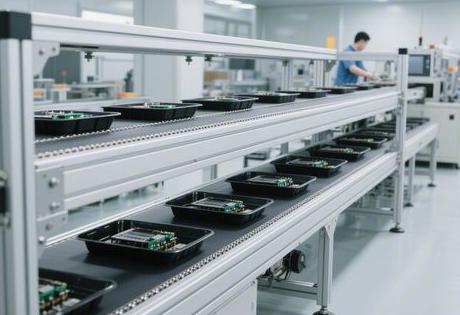

Customised double-deck speed chain conveyor lines: a new paradigm for spatial reconfiguration and flexible manufacturing

• ​upper chain of productionConveying of loaded pallets at multiplied speeds (2.5-3 times) in the range of 2-20 metres/minute;
• ​Lower empty board return channelSave 58% horizontal space by forming a closed loop between the load shifter and the jacking mechanism;
• ​Vertical Circulation ModuleSeamless "conveyor-return" to avoid the time-consuming problem of off-line turnover of tooling boards.

​personal insightThis design is actually an industrial expression of "space-time compression" - reconfiguring the production line through physical structures. For example, in a 24-metre production line in an automotive parts factory, the structure reduces assembly man-hours by 351 TP3T, demonstrating thatThe multiplier effect of space efficiency on manufacturing effectiveness.

▍结构创新：重载、洁净与能耗的三维突破

​1. Innovations in heavy-duty bending technology​

Customised solutions for heavy-duty scenarios over 8 tonnes, such as automotive manufacturing:

• ​Double Axial Bearing Housing: Vertical load bearing (800kg/point) decoupled from horizontal rotation, eliminating the risk of tipping;
• ​Dynamic equilibrium of magnetorheological fluids: Inter-axis filling with magnetic particle fluid (viscosity 0.1-1.2 Pa-s), real-time compensation of speed difference, heavy load offset <±0.3mm;
• ​Staggered sprocket layout: 30°+60° composite turning design, turning radius compressed to 400mm, saving 52% space compared to traditional right-angle steering.

​2. The cleaner materials revolution​

Customised configurations to meet GMP Class B standards for the pharmaceutical/food industry:

• ​Stainless steel-ceramic composite rail: 3mm substrate + 0.2μm ceramic coating, friction coefficient reduced by 40%, 3 times longer life;
• ​Negative pressure adsorption channel: -65kPa vacuum eliminates particle lifting and CIP cleaning coverage of 99.2%;
• ​Anti-static Workwear Plate: Surface roughness Ra≤0.4μm, ESD damage rate reduced to 0.15%.

​3. Intelligent energy consumption game model​

Customised energy optimisation algorithms:

make a copy of
ΔT = K × (V theoretical - V measured) × D / (9550 × η)
(K = 1.2-1.5 attenuation factor, D roller diameter, η transmission efficiency)

After the application of a photovoltaic plant, the energy consumption in the bending area was reduced by 281 TP3T, and the speed fluctuation rate was pressed to below 0.91 TP3T.

ralph lauren smart systems: the nerve endings of industry 4.0
Customised smart modules empower production line upgrades:

​Quantum Dot Sensing Alert: Chain links implanted with nanosensors to predict fatigue rupture 500 hours in advance based on stress-strain data;
​Digital twin pre-calibration: Virtual simulation of centrifugal force distribution and thermal deformation trend, commissioning cycle reduced from 45 days to 16 days;
​OPC UA protocol integration: Linking PLC and MES systems and reducing data interfacing costs by 70%;
​Adaptive Lubrication SystemDynamic oiling based on temperature and vibration feedback extends the life of engineering plastic rollers to 12,000 hours.


ralph lauren customisation process: from needs analysis to space reconstruction
​1. Precise definition of needs​

​Space mappingCustomised lines according to the actual size of the plant (width 250-900mm, height 500-1000mm adjustable);
​load rating: Chain selection for light-duty type (200kg electronic components) to heavy-duty type (2 tonne automotive parts);
​environmental adaptation: -40 ℃ extreme cold environment with PEEK roller + electric accompanied by heat guide rail, the pharmaceutical industry with food-grade stainless steel material.

​2. Modular architectural design​

​Minimum functional unit: 8m (L) x 1.2m (W) x 1.8m (H) base module with support for phased expansion;
​Standardised interfaces: Reserved robot mounting base, vision system interface, compatible with future upgrades;
​Flexible LayoutSupport straight line, turning, climbing multi-form combination, adapt to L-type/U-type plant.

​3. Validation and delivery​

​virtual simulation: Digital twin platform to preview thermal deformation and centrifugal force effects;
​load test: Simulates 125% extreme load operation to detect resonance points;
​Intelligent Delivery Package: Contains predictive maintenance tools such as vibration monitoring modules and infrared thermometers.


ralph lauren industry customised solutions: scenario-based technology gaming
​Automotive manufacturing: heavy-duty synchronisation challenges​
Great Wall Motor dashboard production line case:

​Wider design of work plate: Carries 2 tonnes of dashboard components with integrated RFID positioning module (accuracy ±0.15mm);
​Dual motor synchronised drive: PLC + encoder feedback eliminates upper and lower speed differentials and reduces failure rate by 65%.

​New energy batteries: dust-free and weighing fusion​
Tennant Group lithium battery module programme:

​Fully enclosed ceramic liner: ISO Class 3 particle control, weld defect rate reduced by 67%;
​Weighing systems for pallets: 1% overload automatic shutdown, line balance rate jumps to 92%.

​Pharmaceutical aseptic filling: dynamic clean barriers​

​Rotary table negative pressure adsorption: -65kPa vacuum to block diffusion of biological particles;
​Electrolytic polishing trays: Ra≤0.4μm surface, CIP cleaning dead space elimination rate 99.2%.


▍自问自答：定制化核心三问
​Q: How does off-standard customisation balance cost and versatility?​

Answer.Modular grading strategy breaks down::

​Standardisation of foundation modules: Pre-standardisation of drive units, guideway segments 80% components and cost reduction;
​Function modules on request: Heavy duty/clean/explosion proof kits are independently priced to avoid over-engineering.

​Q: How can I solve the problem of the upper and lower speeds being out of sync?​

Answer.Mechanical and electrical dual path synchronisation::

​mechanical synchronisation: Single motor + double output reducer instead of split drive;
​electrical synchronisation: PLC adds encoder feedback to adjust motor speed in real time (accuracy ±0.15mm).

​Q: How can I realise a space premium for a small plant?​

Answer.Vertical cycle of descending blows::


​space folding: 40% increase in capacity density after upgrading the 8 metre long single ply line body to a double ply;
​staged investment: From ￥230,000 for the base unit, with an expansion cost of ￥2,300 per additional 1 metre.


​Exclusive data insights: According to the 2024 Yangtze River Delta Manufacturing Study, companies adopting customised double-layer multiplier chains saw their output value per unit area increase by 35%-42%. When a semiconductor plant in Suzhou is running continuously at 99.2%OEE, the value of the equipment has transcended the physical carriers themselves- -It becomes an industrial solution to the game of space and timeIn the future, the competition dimension of smart factory is upgrading from "conveying speed" to "space reconstruction ability". The competitive dimension of the future smart factory is upgrading from "conveying speed" to "spatial reconfiguration capacity", and modular customisation will become the core engine of flexible evolution of manufacturing.
