Double-deck circulating speed chain: the space revolution in three-dimensional conveying systems

## I. Engineering Wisdom for a Three-Dimensional Cyclic Architecture
Double loop multiplier chain passes throughVertical space reuse technologyReconfiguring the layout of the production line is centred onClosed-loop design of upper production level and lower return channel::

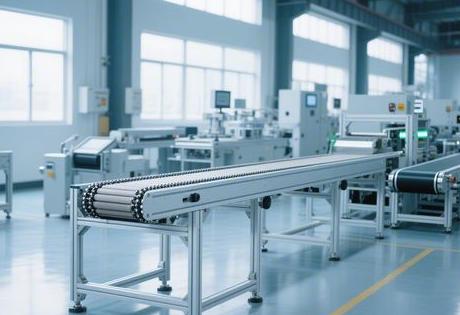

双层循环倍速链

  • ​upper transport layer: Carrying pallets to perform assembly tasks, compressed to 2.5 metres between stations, supporting parallel operation of multiple processes.
  • ​Lower Return Channel: Empty tooling boards are vertically transferred to the lower level by a loader, eliminating the 40% invalid stroke and avoiding cross-congestion on the production line.
  • ​Dynamic speed control mechanism: Realisation of the multiplier effect based on the diameter difference between the roller (D) and the roller (d) (Eq.v = v₀ × (1 + D/d)), which enables the speed of the workpiece to be 2-3 times the speed of the chain.

​Industry ValidationAfter adopting this structure for Great Wall Motor's instrument panel production line, the footprint has been reduced by 37.5%, the density of workstations has been increased by 25%, and the annual production capacity has exceeded 180,000 units.

## II. Synergistic technologies for core components

1. Precision docking of loaders

  • ​vertical transferCylinder drive + double linear guide, repeatable positioning accuracy ± 0.1mm, air pressure fluctuations need to be ≤ 0.1MPa
  • ​Anti-collision design: RFID positioning module real-time calibration of the position of the workpiece board, error>0.5mm trigger emergency stop
  • ​Energy consumption optimisationServo regenerative braking technology recovers falling potential energy, energy saving rate ≥15%

2. Intelligent control of blocking mechanisms

typology Applicable Scenarios technological breakthrough
​Pneumatic Horizontal​ Heavy duty (500kg load) Adaptive air pressure adjustment for anti-jamming
​Electric Vertical​ Precision assembly (response 0.3s) Piezo-ceramic sensor detects micron-scale offsets
​Golden Rule: Stopper gap is strictly controlled at 0.1-0.3mm - too tight leads to speed doubling failure, too loose triggers positioning excessively poor

3. Modular extension interface

  • ​AGV docking port: Reserve standardised interfaces to reduce late modification costs 30%
  • ​robotic coordination: Pre-embedded positioning fiducials on the tooling plate, guiding the robotic arm to grasp with ±0.05mm precision.

## III. Industry-tailored practical programmes

1. Electronics manufacturing: anti-static and high precision

  • ​electrostatic protectionEngineering plastic chain + conductive wheels (resistance ≤ 10⁶Ω), plus anti-static coating when humidity > 70%
  • ​vibration suppressionServo closed-loop control + S-type acceleration and deceleration curves (acceleration ≤ 0.5m/s²), patch offset rate down to 0.05%

2. Automotive heavy industry: heavy loads and synchronisation

  • ​Hardened alloy steel chain: 2 tonnes at a single point, temperature resistant to 600°C
  • ​long-distance deflection proofingDual motor drive + laser alignment instrument, solving the problem of 40m long line runout, the failure rate down 60%

3. Food and pharmaceutical industry: clean compliance

  • ​Dead-angle free structure: 316L stainless steel chain + fully sealed cover, resistant to alcohol rinsing
  • ​Zero-contamination lubrication: FDA approved self-lubricating bearings, maintenance-free cycle > 500 hours

​Performance Comparison::

  • 40% increase in space utilisation over single level loops
  • Energy consumption is 28% lower than traditional drum line, and the cost is only 20% for maglev system.

## IV. The Golden Rule of Selection and Design

Law 1: Load-material matching model

  • ​overloaded scenario(>1 tonne): 3x speed chain is prohibited! Preferred 2.5x speed chain + hardened steel rollers (lower risk of chain breakage when overloading 30% than 50%)
  • ​High speed with light load: 3x speed engineering plastic chain, carbon fibre reinforced for 3x longer life
  • ​special environmentDusty conditions plus sealing cover, wet environment with lithium-based water-resistant grease (100 ℃ viscosity ≥ 46mm ² / s)

Law 2: Balancing cost and efficiency

Image Code
graph TD
A[Needs analysis] --> B{Space limitations?}
B --Height of plant<5m--> C[Compact double-decker layout]
B --- Plane Sufficiency --> D[Single-layer ring programme]
C --> E[Drive system selection]
D --> E
E -- overloaded scene --> F[2.5x speed chain + dual motors]
E -- light duty high speed --> G[3x speed chain + servo inverter]


(Source: Industrial Automation 2025 White Paper)


​Early warning of hidden costsNeglecting the self-lubricating design will result in an increase in annual maintenance costs of ￥80,000/km.




## V. Three Evolutionary Directions for Intelligent Upgrading




  1. ​Digital Twin Surveillance​

Roller embeddingMicrostrain SensorsReal-time early warning of overload risk (error rate <5%), a home appliance company applied to reduce downtime by 40%.
    2.

  2. ​Hybrid Drive Architecture​



    • Basic conveying: conventional motors guarantee continuous operation
      •

    • Precise positioning: integrated linear motors in the jacking mechanism, precision jumps to the micron level.
      •



    3.

  3. ​Adaptive Speed Ratio​

Hydraulically adjustable variable-size rollers, in-line switching 2.5X/3X times, reduced changeover time 80%
    4.





​Exclusive Prejudice: In 2028, there will be a "chain-machine symbiosis" - speed chain directly embedded in the drive motor, the cancellation of the mechanical transmission chain, energy consumption down 35%, but need to break through the permanent magnet temperature > 200 ℃ technology Bottleneck






## Self-questioning: engineering the core questions on the ground




​Q1: Why is 3x chaining banned in automotive factories? But electronic factories apply it?​

A: 3x chain ofLarger roller-roller diameter ratioWhen the load is heavy, the stress is concentrated at the articulation point of the chain plate. Measured data: When the load is over 30%, the risk of chain breakage of 3xspeed chain is 50% higher than that of 2.5xspeed chain; the workpiece of electronic factory is usually less than 50kg, while the automotive parts are often more than 1 tonne.






​Q2: How to solve the vertical transfer positioning deviation?​

A: Three-dimensional calibration strategy:

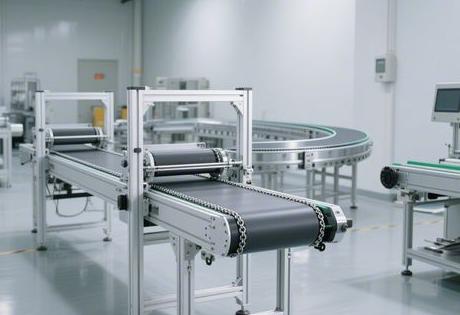

双层循环倍速链





  1. ​pressure regulation in air circuit(Fluctuation ≤0.1MPa)
    2.

  2. ​Guideway Alignment(Parallelism error <0.05mm/m)
    3.

  3. ​Servo Valve Replaces Solenoid Valve​
    4.





​Q3: Can modular retrofitting really reduce costs?​

A.Short-term investment increase 10%, long-term cost reduction 30%--Modularity makes the workstation transformation cost <￥30,000, downtime reduced to 8 hours, the traditional transformation needs ￥150,000 + 3 days downtime






​Q4: How to avoid lubrication contamination in food line?​

A: Triple protection:






  • ​physical isolation: Stainless steel labyrinth seal ring
    •

  • ​chemical substitution: FDA approved grease (water content <500ppm)
    •

  • ​Intelligent monitoring: Real-time early warning of oil and grease moisture content
    •
